商品の詳細:
|
| 製品名: | 振動ボウルフィーダ | 材料: | ステンレス鋼 (SUS304) アルミ (AL7075) |
|---|---|---|---|
| 力: | 200W、500W、1000W、1500W、2000W | 電圧: | 220V 50Hz/110V 60Hz |
| 保証: | 2年 | ボウル仕上げ: | 研磨またはPUコーティング |
| パッケージ: | 木製ケースパッケージ | 提供されるアフターサービス: | スペアパーツとテクノロジーサポート |

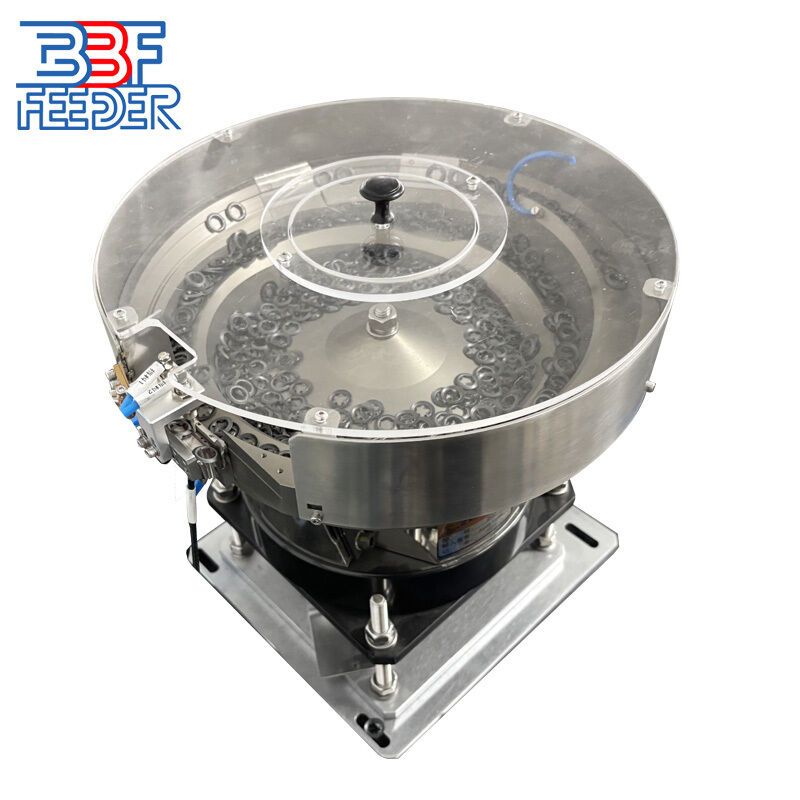

Rubber O-Ring Vibrating Bowl Feeder CE Certificated Customized Feeding Machine
1 . Descriptions:
When choosing a vibratory bowl feeder supplier, there are several critical factors to consider, which directly determine the reliability of the equipment and the efficiency of your production line:
Company Experience
Rich experience in vibratory bowl feeder production enables a supplier to design the most suitable equipment for your material conveyance needs at the lowest cost. With over 20 years of experience in manufacturing vibratory bowl feeders, our company has successfully developed and produced feeders suitable for conveying a wide range of materials across various industries.
Vibratory Bowl Feeder Quality
Our vibratory bowl feeders are generally made of stainless steel, featuring excellent high-temperature resistance and corrosion resistance. In addition, key components such as the base are sourced from world-leading brand manufacturers, ensuring the overall stability, durability and long service life of the equipment.
After-Sales Service
We provide a two-year warranty for all our vibratory bowl feeders. During the warranty period, if you encounter any problems or have any questions, please feel free to contact us, and we will definitely provide you with a satisfactory solution in a timely manner.
2 . Specifications:
| Product name | Vibratory Bowl Feeder |
| Material | Aluminum(AL7075), Stainless Steel(SUS304) or Based on Customers' Requirements |
| Controller | CUH,Sanki,Sinfonia,REO,Afag |
| Voltage | 220V 50HZ/110V 60Hz or Based on Customers' Requirements |
| Power | 300W/500W/1000W/1500W/2000W |
|
Color |
Green or Based on Customers' Requirement |
| After-sales Service | Spare Parts and Technology Support |
| Warranty | 2 Years |
| Certification | CE, ISO9001, ROHS |
| Lead Time | 3 Working Weeks |
3 . Custom Vibratory Bowl Feeders :
Vibratory bowl feeders are ideally suited for handling small components, where manual manipulation often leads to material damage or misalignment. An electronics manufacturer faced this challenge when seeking to automate the transportation and positioning of diodes on their production line. To improve efficiency and reduce errors, they approached us for a customized vibratory bowl feeder solution.
Our engineers designed a specialized track tailored to the precise dimensions of the diodes, incorporating integrated guide grooves to ensure proper orientation. Through extensive testing and fine-tuning, we optimized the feeder's frequency and amplitude. This rigorous development process ensured that the diodes are outputted stably, continuously, and efficiently in the correct sequence.
The implementation of this vibratory bowl feeder delivered remarkable results. Production efficiency was significantly enhanced, with the system capable of reliably delivering 500 diodes per minute. Furthermore, the risk of diode damage was virtually eliminated, resulting in substantial cost savings for the manufacturer.

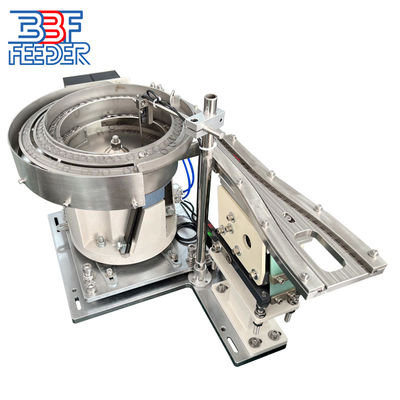

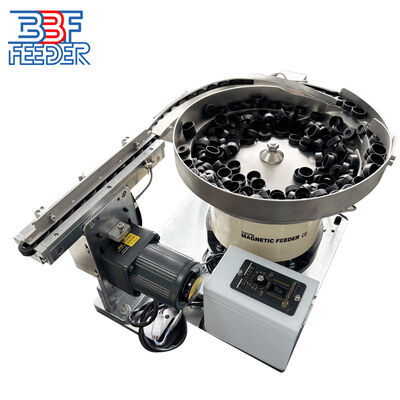

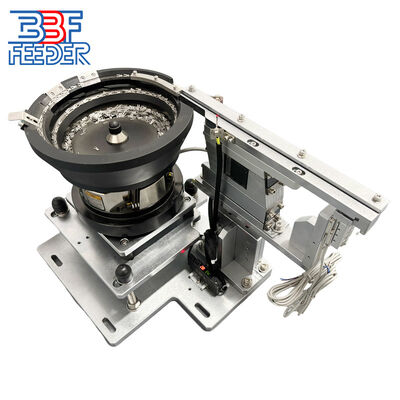

4 . More Pictures:
